Aerobits

Aerobits is a specialised developer of miniature transponders and avionics systems for unmanned aerial vehicles (UAVs) and drones. Based on patented technology, the company’s hardware and software solutions process radio signals in extremely low-SWaP packages. This concept is at the core of Aerobits’ OEM modules, which form the basic building block of its miniaturized avionics solutions.

The company supports global initiatives to integrate UAS into civilian airspace and develop the path towards full autonomy, and specializes in air traffic control systems, which are an important component of future UTM (unmanned traffic management) and U-Space solutions.

Aerobits’ miniaturised avionics enable DAA (detect and avoid) capabilities for even the smallest drones, enhancing safety for all airspace users and providing easier UAS identification and tracking.

OEM ADS-B & Remote ID Devices

Embedded ADS-B and Remote Identification solutions for system integrators

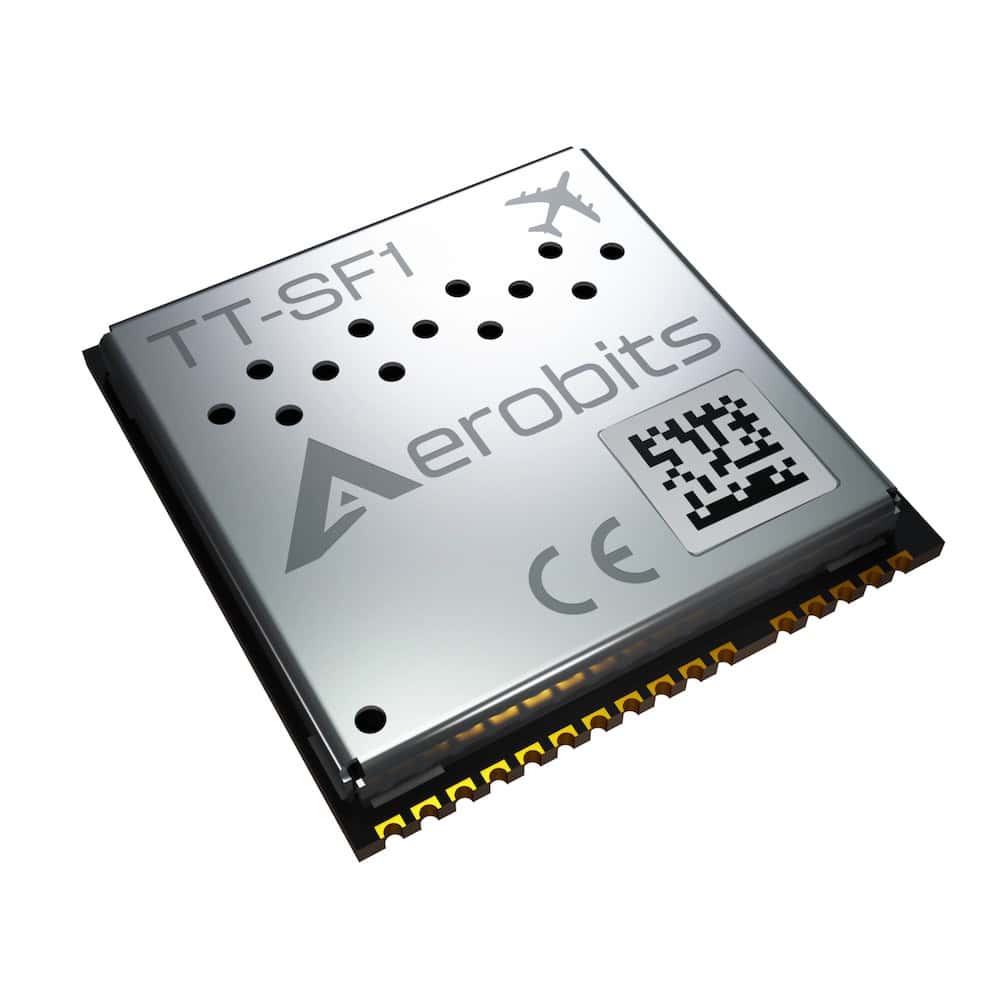

Aerobits’ high-performance OEM ADS-B modules for drones enable enhanced situational awareness and are ideal for a variety of applications including SAA/DAA (Sense and Avoid / Detect and Avoid), surveillance, traffic analysis, and unmanned traffic management (UTM) systems. The low-SWaP systems are based on proven FPGA-in-the-Loop technology, enabling high-speed RF data processing with a significantly reduced number of electronic components.

The modules feature a number of capability options to suit a wide range of requirements, including GNSS, FLARM, and Mode A/C/S.

Compare OEM ADS-B device specifications:

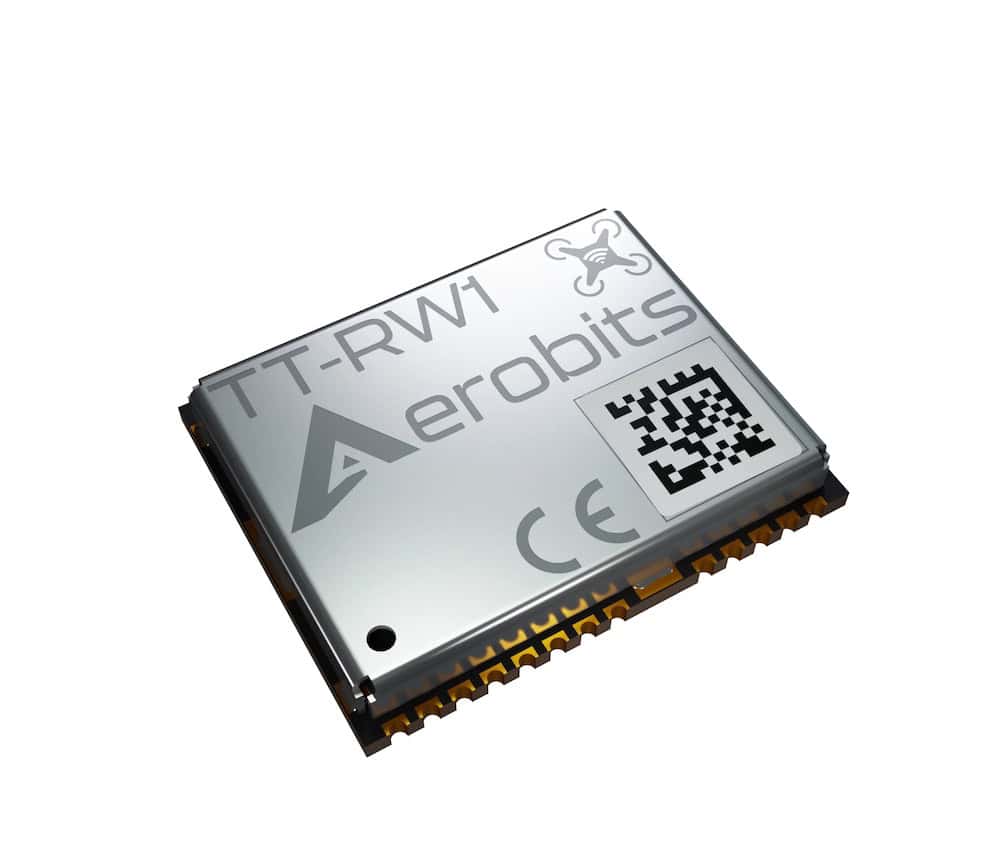

Aerobits also provides OEM Remote ID modules that are designed to meet ASTM/ASD-STAN standards requirements for remote drone identification and localization. Using BLE (Bluetooth Low Energy) broadcast technology, they provide surveillance and drone operator identification information that can be picked up using modern mobile devices such as smartphones or tablets.

Compare OEM Remote ID device specifications:

ADS-B Evaluation Kits

Evaluation Kits for High-Performance ADS-B Modules

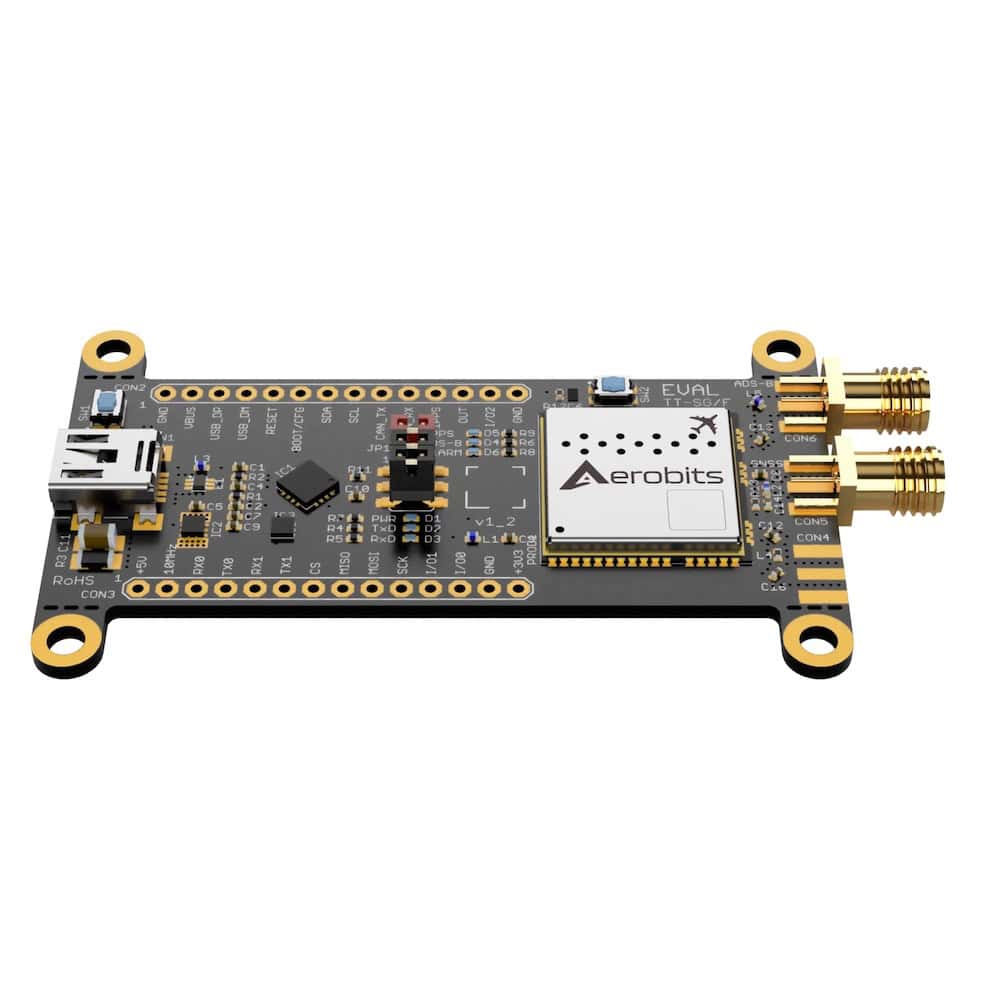

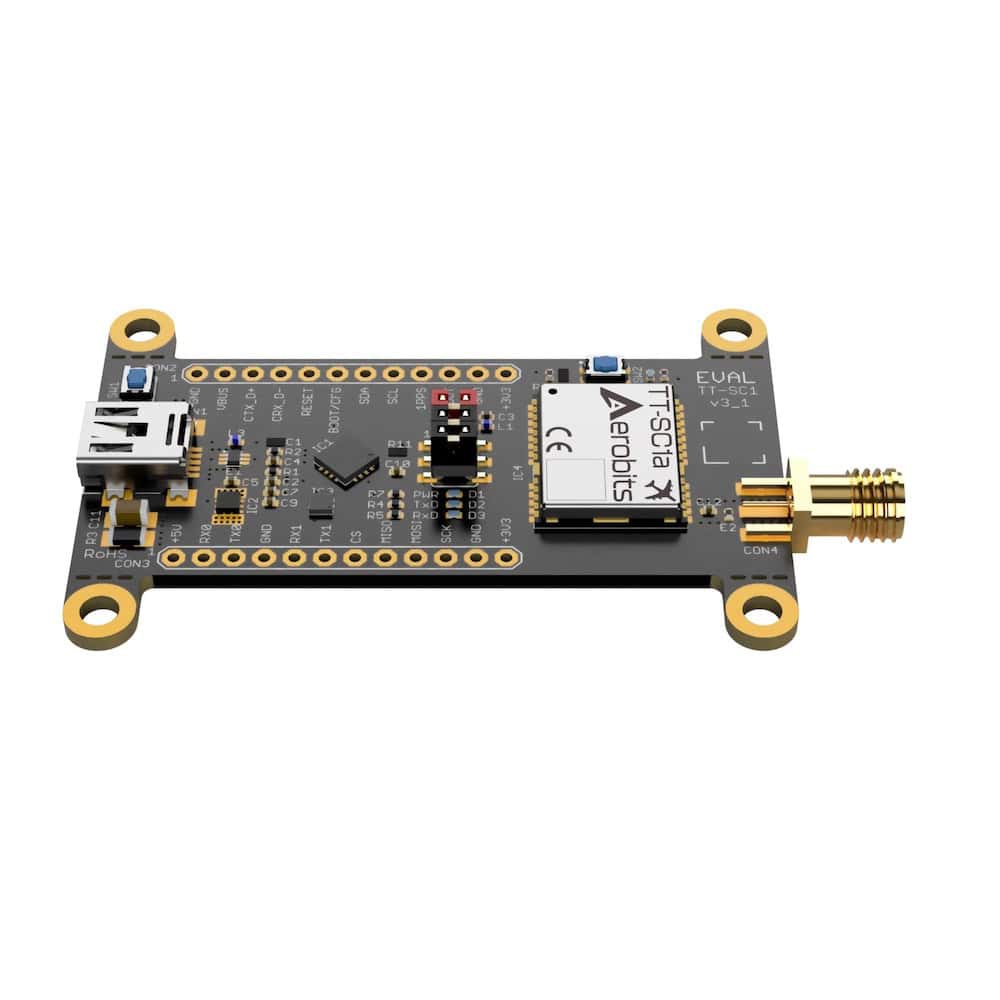

Aerobits’ evaluation kits allow OEM developers to quickly get up to speed with the high-performance ADS-B modules, and include a 1090MHz band receiver with an integrated ADS-B decoder, conforming to MOPS specified in TSO-C199.

Powered by USB or external 5V supply and connected via a Virtual COM port, the boards provide an easy interface to the OEM modules, with convenient extension headers and dedicated software. They are ideal for quickly creating prototype ADS-B applications such as UAV ground stations and unmanned traffic management systems.

Plug & Play ADS-B Drone Technology

Compact & lightweight ADS-B receivers & transceivers

Aerobits’ low-SWaP and easy-to-integrate Plug & Play ADS-B devices provide enhanced situational awareness and DAA/SAA capabilities for civil and commercial UAS, and are designed to help accelerate the safe integration of drones into non-segregated airspace.

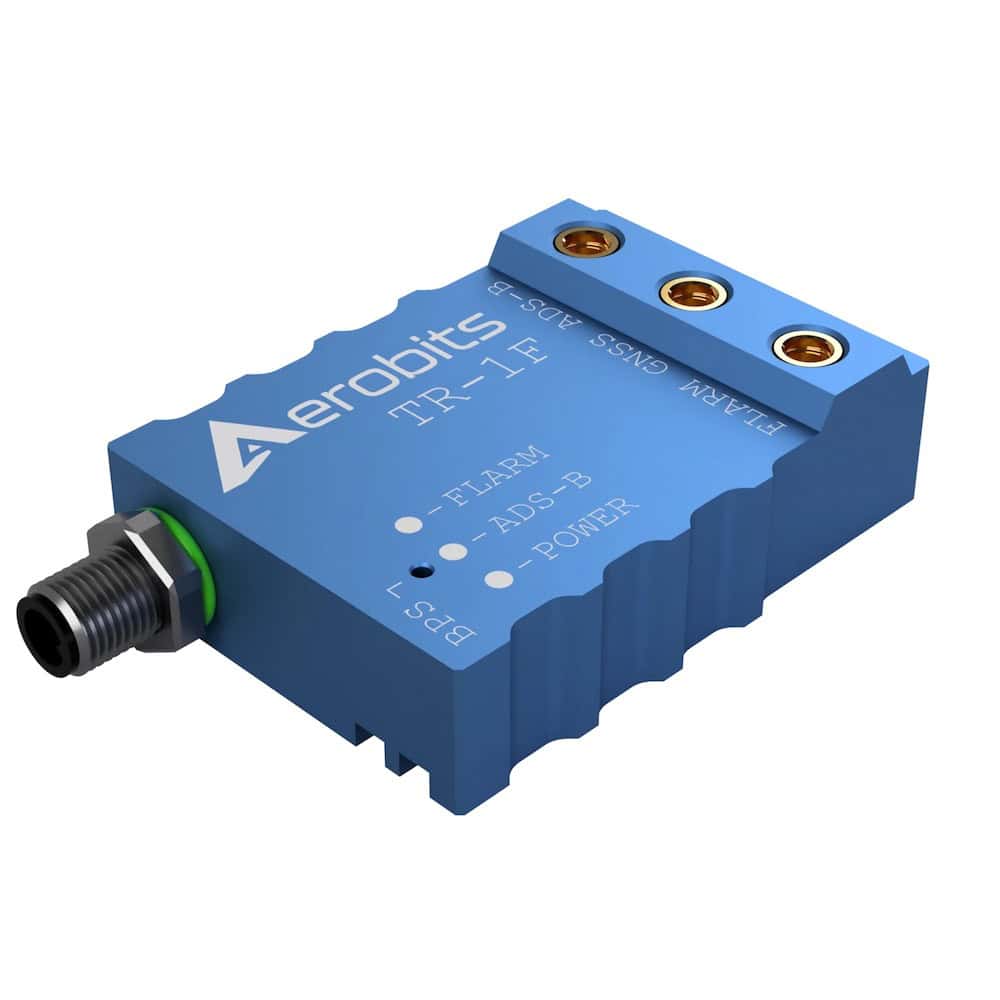

The Aero Pro is one of the world’s smallest and lightest Plug & Play ADS-B receivers, featuring a USB port for easy connectivity. The TR-1A and TR-1F miniature ADS-B transceivers incorporate a high-quality GNSS receiver and barometric altitude sensor, with the TR-1F supporting transmission and receiving of FLARM data.

Compare Plug & Play Device Specifications:

	Aero Pro	TR-1A	TR-1F	TR-10	TR-10i
Dimensions (mm)	31.5 x 15.5 x 7.3	35 × 25 × 8.5	35 × 25 × 8.5	53.5 × 43.5 × 18	53.5 × 43.5 × 18
Weight (g)	4	14	14	75	75
ADS-B in	✓	✓	✓	x	x
ADS-B (out)	x	✓	✓	✓	x
FLARM in/out	x	x	✓	x	x
Built-In GNSS	x	✓	✓	x	x
Built-In Pressure Sensor	x	✓	✓	✓	✓

UAV/Drone Tracking & Remote ID Modules

Hook-On-Device – Drone Tracking for UTM

UAS tracking transponder with LTE Modem and FLARM

The Hook-On-Device is a compact and lightweight UAS transponder with integrated LTE modem and SIM card that transmits its current GNSS position via FLARM to the leading Unmanned Traffic Management (UTM) system developed by DFS, and can also receive FLARM and ADS-B broadcasts from surrounding air traffic. The highly integrated multi-band transceiver provides a comprehensive, future-proof UTM and U-Space solution for tracking, Remote ID and collision avoidance.

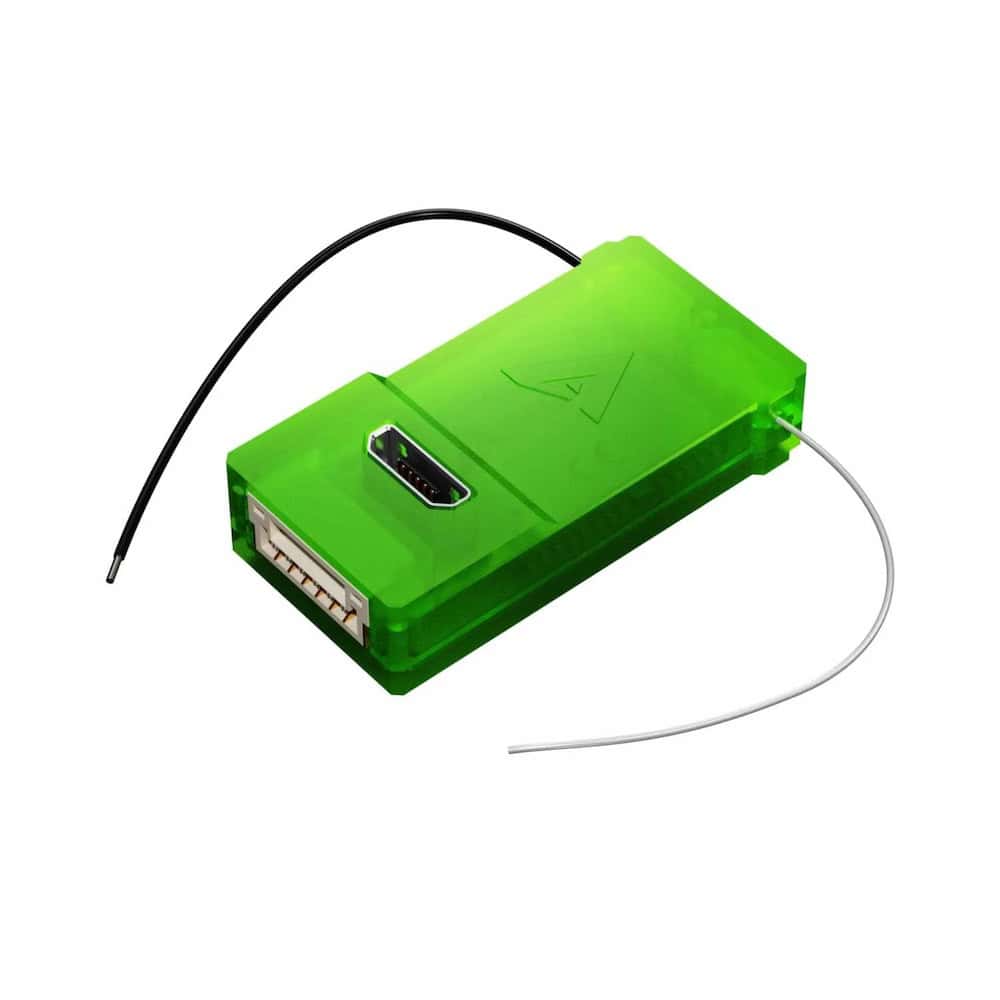

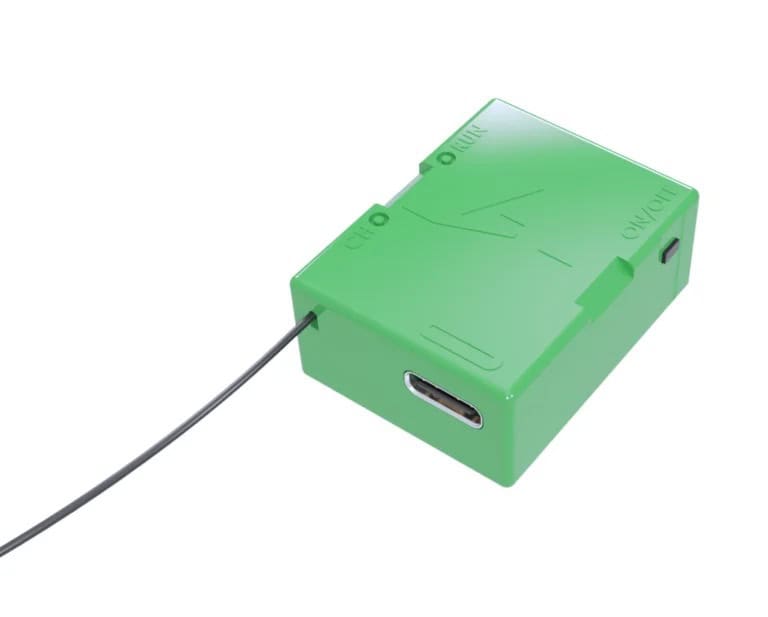

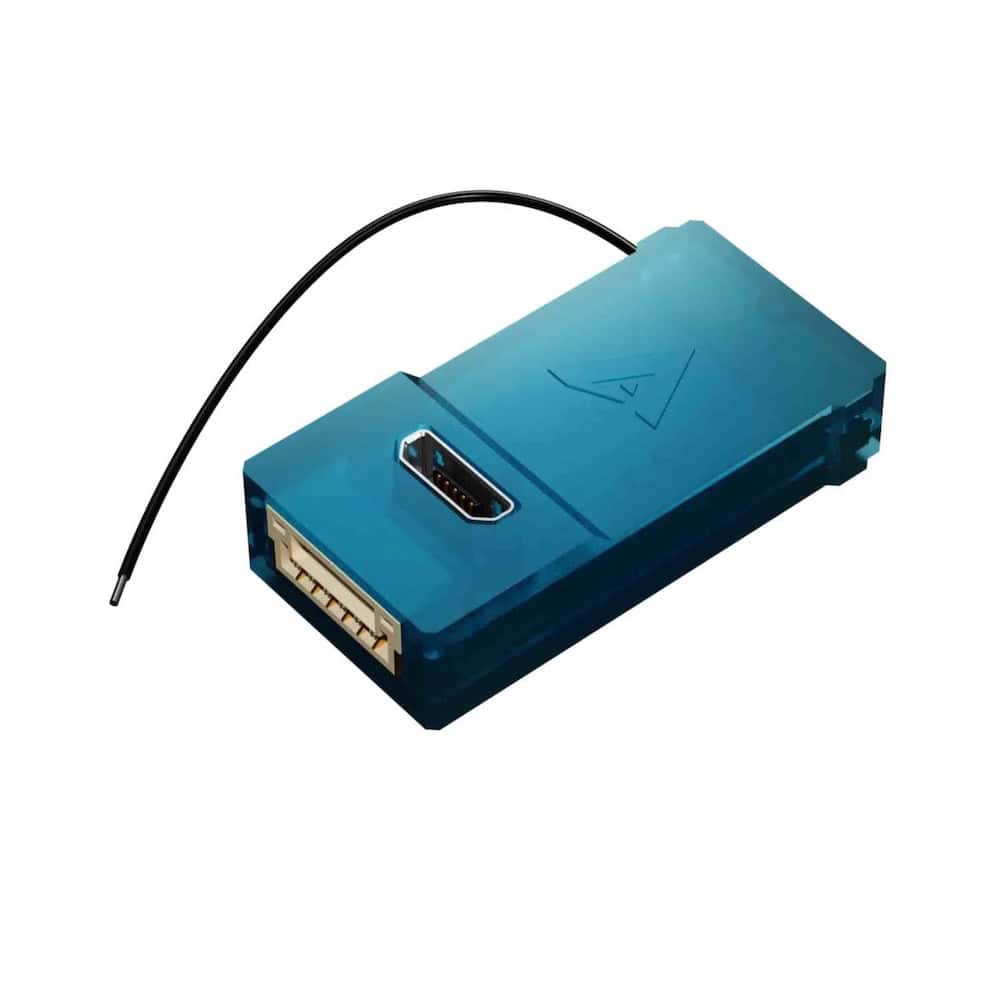

idME Drone Identification & Tracking Modules

ASTM-compliant UAS Remote ID and tracking

The idME family of modules is designed to meet the standards for remote drone identification and localization as set out by ASTM International and ASD-STAN, providing surveillance information and easy drone and operator identification capabilities. They have been certified by the FCC and EASA and are compliant with the FAA’s latest MoC.

The low-SWaP modules can be easily interfaced with Pixhawk drone controllers via a JST connector, and programmed via AT commands to configure broadcast messages with info such as drone identification number or type of aircraft.

trkME Drone Tracking Modules

Plug-and-play drone trackers for effective airspace management

Aerobits’ trkME modules are designed to support the safe and effective integration of UAS into shared airspace, meeting the requirements of modern UTM and U-space ecosystems. Available in three variants to suit a range of tracking needs, the lightweight plug-and-play modules offer a variety of different options, including ADS-B IN and OUT, Mode A/C/S, and Remote ID via Bluetooth and Wi-Fi.All variants include an integrated pressure sensor, as well as UART and USB interfaces for versatile integration capabilities.

Ground Infrastructure

Mobile and fixed ground stations for air traffic surveillance & BVLOS

Aerobits provides a range of ground-based stationary and mobile solutions for applications such as air traffic surveillance and UTM/U-Space airspace monitoring, providing capabilities including ADS-B, FLARM, and Remote ID.

The company’s durable ground stations are designed to withstand harsh outdoor environments, and are ideal for safety-critical VLOS (visual line of sight) and BVLOS (beyond visual line of sight) operations.
