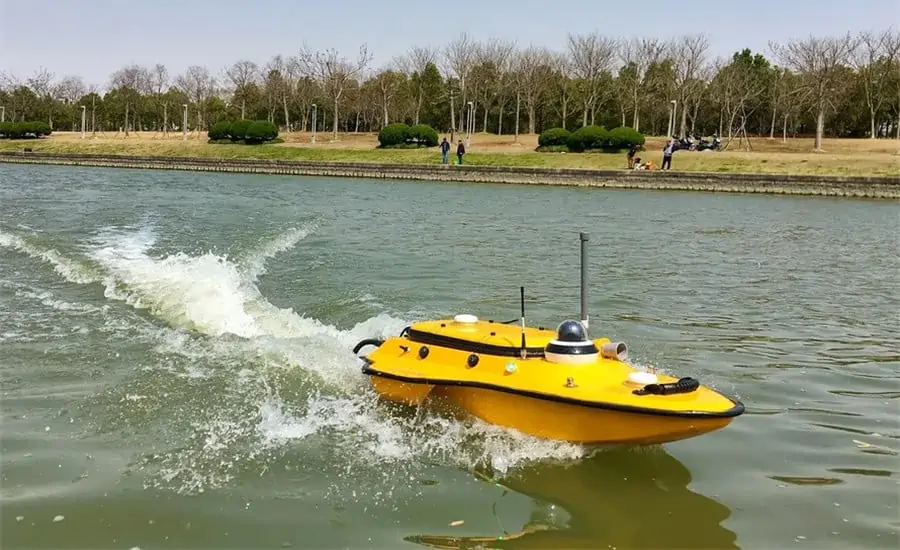

The APACHE 3 is a portable Unmanned Surface Vehicle (USV) developed for high-accuracy bathymetric data collection in shallow or confined aquatic environments. With a one-piece carbon fiber hull weighing just 7 kg and measuring 1 meter in length, the system is designed for single-person operation and transport to remote sites. Its reinforced hull structure provides 10 MPa strength and 60% improved impact resistance, ensuring reliable performance in dynamic riverine and coastal conditions.
Equipped with a 200 kHz single-beam echo sounder, dual GNSS modules, and an integrated IMU, the APACHE 3 delivers stable positioning and precise depth measurements. The onboard 4G communication link enables real-time transmission of video, survey data, and RTCM corrections, while the Android-based EasySail interface supports autonomous mission planning, live monitoring, and adaptive route control. An 800 W motor system with hot-swappable batteries ensures up to seven hours of endurance, maintaining efficient and uninterrupted hydrographic operations.
Specifications:
| Weight: | 7 kg (without instrument and battery) |
| Dimensions (L x W x H): | 1050 mm x 550 mm x 390 mm |
| Max Speed: | 6 m/s |
| Motor Power: | 800 W (up to 7200 RPM) |
| Endurance: | Up to 7 hours |
| Payload Capacity: | Up to 35 kg |
| Draft: | 10 cm |
| Positioning System: | Dual GNSS + IMU |
| Echosounder Type: | Single-beam, 200 kHz |
| Echosounder Range: | 0.1 – 200 m |
| Hull Strength: | 10 MPa |
