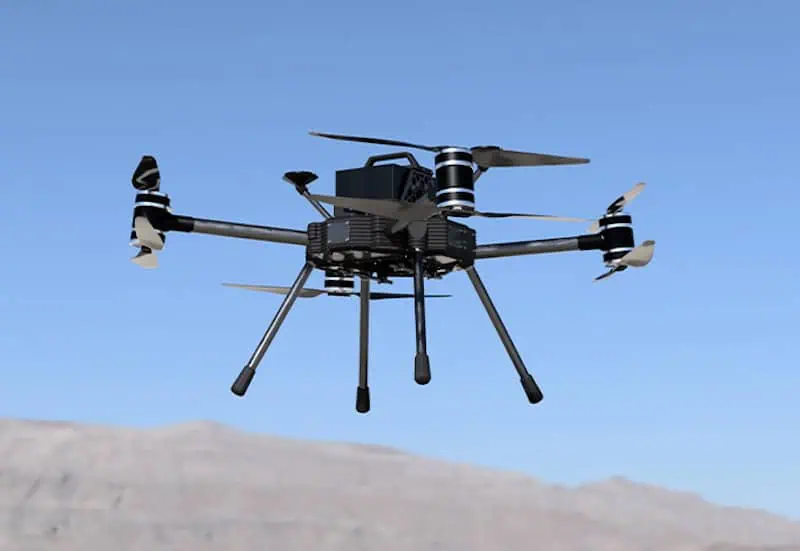

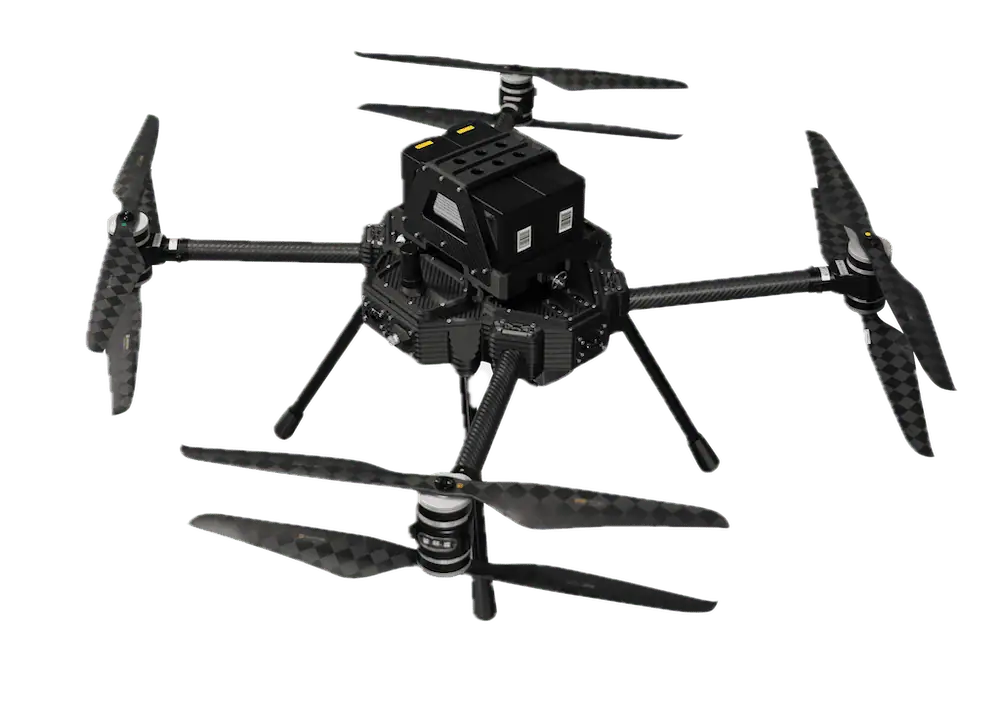

The Sensus M is a versatile multirotor UAV designed for a wide range of tasks in sectors such as energy, environmental monitoring and defense, including logistics, surveillance and surveying. Available in either standard 4-rotor or coaxial 8-rotor variants, it can be powered either by traditional LiPo batteries, or an 800W hydrogen fuel cell system.
The rugged drone platform features a core hull constructed from 3D-printed Nylon reinforced with chopped carbon fiber strands for the utmost in durability. With 12 independent access hatches, it can be customized with a variety of sensors, avionics systems and equipment to meet virtually any requirements. Payloads and batteries can be switched between top and bottom rails, ensuring access to power and data feeds without compromising performance.
Sensus M is equipped with a host of navigation and safety features, including an RTK GNSS receiver, a Mode S ADS-B transceiver and a laser avoidance sensor.
Specifications:
| Sensus M4 | Sensus M8 | |
| Dimensions: | 770 x 735 x 540 mm | |
| MTOW: | 14 kg | 23 kg |
| Payload Capacity: | 5 kg | 11 kg |
| Maximum Flight Time: | 45 mins no payload 25 mins with max payload |
|
| Range: | 67.5 km | |
| Maximum Speed: | 25 m/s typical | |
| Maximum Pitch Angle: | 45o | |
| Wind Resistance: | 18 m/s | |
| Service Ceiling: | 3500m | |
| IP Rating: | IP54 IP65 upgrade available |
|
