Drone Flight Controller and Carrier Boards

Drone flight controllers are essential components of unmanned aerial vehicle (UAV) systems, enabling accurate navigation, stability in the air, and autonomous operation. These systems translate pilot inputs and sensor data into precise control of the drone’s motors and actuators, ensuring seamless and responsive flight performance under a range of conditions.

The Difference Between Drone Flight Controllers and Autopilots

While the terms are often used interchangeably, there is not an exact overlap between drone flight controllers and autopilots.

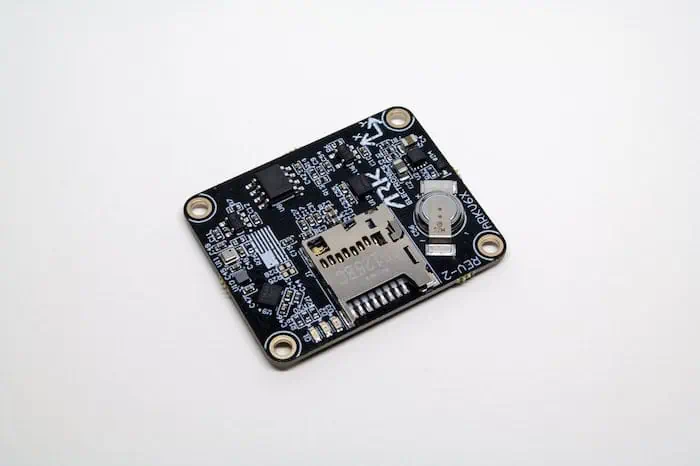

Drone Flight Controller – ARKV6X IIM-42653 by ARK Electronics

Flight controllers act as the primary control system for drones, responsible for stabilizing the aircraft by managing pitch, yaw, roll, and throttle. By processing input from sensors like gyroscopes, accelerometers, and magnetometers, the flight controller maintains the drone’s orientation and balance in flight. This constant adjustment of motor speeds through electronic speed controllers (ESCs) ensures stable flight, even in challenging conditions.

Autopilots, on the other hand, extend the functionality of flight controllers by enabling autonomous flight. Beyond basic stabilization, autopilot systems can execute complex flight paths, waypoint missions, and return-to-home functions without manual input. Autopilots are critical for long-range missions, BVLOS (beyond visual line of sight) operations, and other use cases where minimal human intervention is required.

In essence, flight controllers handle immediate stability and maneuvering, while autopilots also offer higher-level navigation and mission execution. Most modern UAVs flight controllers offer autopilot functionality, resulting in drones that are capable of sophisticated autonomous flight and precise manual control when needed.

Components and Sensors Used in Flight Controllers for Drones

The performance of a drone flight controller relies heavily on a suite of integrated components and sensors. Each element plays a crucial role in ensuring the UAV remains stable, responsive, and aware of its environment.

GNSS & GPS Modules

VOXL 2 Drone Flight Controller by ModalAI

GNSS receiver modules utilize GPS (Global Positioning System) and other constellations for navigation, positioning, and waypoint tracking. By continuously calculating the drone’s location, GNSS data allows the flight controller to execute return-to-home functions and geofencing. Dual GNSS setups are often employed to improve accuracy and redundancy.

Gyroscopes and Accelerometers

Gyroscopes measure angular velocity, allowing the flight controller to detect and correct shifts in orientation. Accelerometers monitor linear acceleration, ensuring the drone maintains level flight. Together, these sensors provide the fundamental data needed to stabilize the drone.

Magnetometers

Magnetometers function as digital compasses, allowing the UAV to determine its heading relative to magnetic north. This is crucial for precise navigation and directional accuracy, particularly during autonomous flight.

Barometers

Barometers measure atmospheric pressure, which correlates directly with altitude. By integrating barometric data, flight controllers can maintain consistent altitude, enabling smooth transitions and accurate hover control. Altitude hold is a common feature of flight controllers and autopilots that is reliant on this sensor.

Inertial Measurement Units (IMUs)

An IMU combines gyroscopes, accelerometers, and sometimes magnetometers into a single module, providing comprehensive motion and orientation data. Redundant IMUs are often used in professional UAVs to enhance reliability.

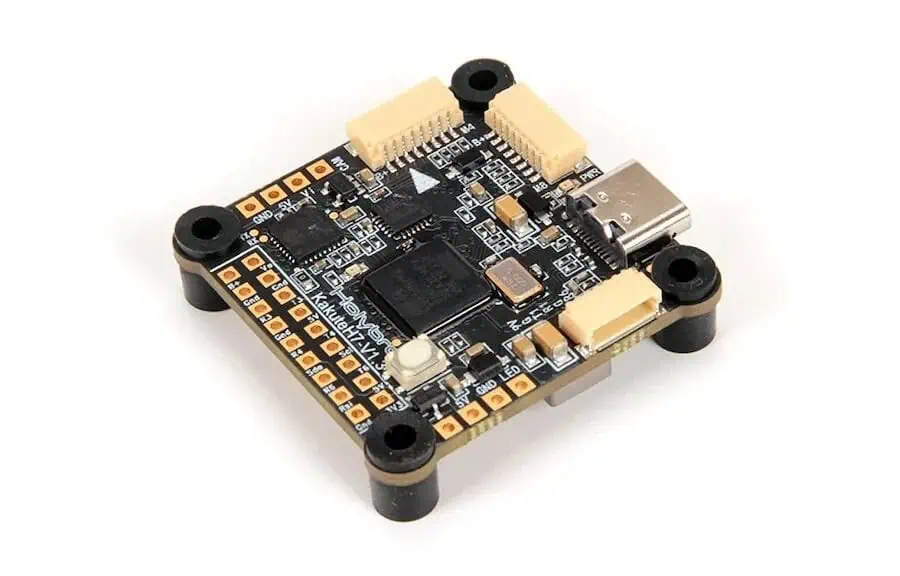

Flight controllers are mounted on control boards, which house microprocessors that interpret sensor data and manage communication between the drone’s components. These boards often feature expansion ports for auxiliary sensors and custom hardware. The system may be provided as a board-level component to provide OEMs and systems integrators with flexible and easy installation, or in a rugged enclosure that protects against environmental factors such as water, dust, shock, vibration and EMI.

Common Features of Drone Flight Controllers

Modern drone flight controllers offer an array of advanced features that cater to specific UAV applications, from commercial aerial photography to high-risk defense operations.

Autonomous Flight Modes

Autonomous capabilities, driven by autopilot systems, include waypoint navigation, follow-me functions, and terrain-following. These features enable drones to complete complex missions without constant manual control, enhancing operational efficiency.

Return-to-Home (RTH)

Return-to-home is a failsafe function that uses GPS data to guide the drone back to its launch point in case of signal loss or low battery. This feature minimizes the risk of drone loss, particularly during long-distance flights.

Altitude Hold

By leveraging barometers and accelerometers, altitude hold maintains a fixed elevation during flight. This feature is crucial for aerial photography, mapping, and surveying, ensuring consistent image capture and data collection.

Real-Time Telemetry

Flight controllers transmit real-time telemetry data to ground control systems, providing live updates on drone altitude, speed, orientation, and battery health. This data allows operators to monitor and adjust flight parameters mid-mission.

Obstacle Avoidance

High-end flight controllers integrate obstacle avoidance sensors and machine learning algorithms, enabling drones to detect and avoid potential hazards autonomously. This feature enhances operational safety, particularly in urban or hazardous environments, and is crucial for BVLOS operations.

Redundancy and Fail-Safes

Professional UAVs often incorporate redundant flight controllers and sensors to mitigate the risk of system failure. Fail-safe features trigger automatic landing or return-to-home procedures if critical components malfunction.

Selecting the Most Suitable Flight Controller

Choosing the appropriate flight controller for a drone depends on several factors, including the type of UAV, its intended use, and environmental conditions.

UAV Type and Configuration

• Multirotor Drones: Require flight controllers capable of managing rapid motor adjustments for precise hovering and maneuvering.
• Fixed-Wing Drones: Demand controllers that prioritize aerodynamic efficiency and smooth glide paths.
• HybridVTOL UAVs: Need hybrid flight controllers that can seamlessly transition between hover and forward flight.

Payload and Mission Requirements

Drones carrying heavy payloads, such as LiDAR systems or significant amounts of cargo, require flight controllers that can manage weight distribution and maintain stability.

Environmental Conditions

For UAVs operating in harsh environments, flight controllers must offer robust weatherproofing and protection against shock, vibration and electromagnetic interference. Systems used in military-grade drones may also require anti-jamming features and encrypted communication.

User Experience and Expandability

Entry-level flight controllers typically prioritize simplicity and ease of integration, while professional-grade systems may emphasize modularity and firmware customization. Expandable platforms allow UAV operators to upgrade flight controllers with additional features as mission demands evolve.
