Introduction to Multi-Input, Multi-Output (MIMO) Antenna Technology

What MIMO Means: Beyond a Single Link

Multiple Input, Multiple Output (MIMO) is a significant evolution in wireless communication engineering, directly addressing the scaling limits of conventional Single-Input, Single-Output (SISO) configurations. Instead of relying on a single transmit-and-receive pair, a MIMO antenna system leverages multiple coordinated elements to actively exploit spatial diversity within the Radio Frequency (RF) environment.

Where traditional systems sought to minimize multipath propagation, MIMO architects treat these echoes and reflections as a valuable asset. By intelligently coordinating several elements simultaneously, a MIMO system can transmit multiple independent data streams across the exact same frequency band. This significantly improves link robustness and exponentially boosts capacity without demanding scarce additional spectrum. This capability has cemented MIMO antenna technology as the core enabler for modern, high-throughput wireless communication across all domains.

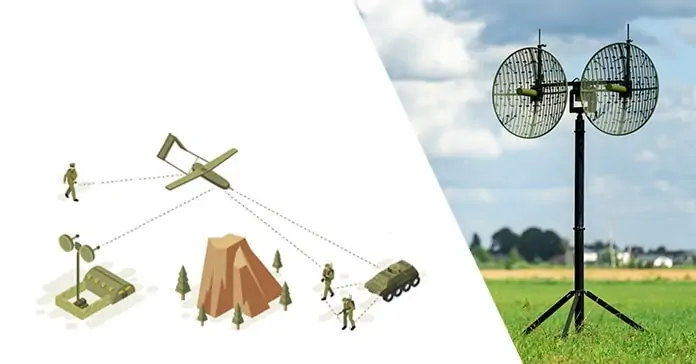

Why MIMO is Critical for Unmanned Systems

Unmanned platforms – whether they are UAVs, UGVs, or USVs – rarely operate in ideal RF conditions. Their environments are dynamic, cluttered, and often contested, ranging from concrete-filled urban canyons and dense forests to complex maritime paths where multipath is intense.

Multi-Port MIMO / MANET Directional Sector Antennas by Southwest Antennas

MIMO antennas provide the necessary resilience for these platforms to sustain high-quality communication links despite these challenges. For smaller platforms, MIMO delivers crucial Command-and-Control (C2) resilience, maintaining connectivity when line-of-sight is obstructed or when subjected to electronic interference. Larger platforms benefit from the dramatically improved throughput, which is essential for transporting multi-sensor ISR payloads, high-definition video, and complex telemetry. In both environmentally and electronically contested spaces, a high-performance MIMO antenna is not just an efficiency gain; it is a significant enabler of link reliability and operational autonomy.

Core Operational Benefits

The practical engineering benefits of deploying MIMO in unmanned systems are clear:

• Higher Throughput: Spatial multiplexing allows multiple data streams to coexist, radically increasing bandwidth efficiency – a critical factor for managing the massive data loads generated by modern ISR sensors.
• Improved Robustness: Diversity techniques actively mitigate the effects of fading, polarization mismatch, and shadowing often caused by rapid airframe maneuvers or ground vehicle structures.
• Extended Range: Enhanced Signal-to-Noise Ratio (SNR) allows ground stations to maintain stable, quality connections at greater distances or while operating with reduced transmit power.
• Better Electronic Protection: Advanced MIMO beamforming capabilities enable the system to suppress localized interference and even null out the effects of deliberate low-power jamming or focused denial efforts.
• Enhanced Autonomy Support: Reliable, high-capacity links ensure that unmanned platforms have the necessary data pathways to utilize complex onboard AI/ML models, distributed sensing, and sophisticated collaborative behaviors.

Core Principles of MIMO Antenna Operation

Spatial Multiplexing: The Bandwidth Multiplier

Omni-directional MIMO/MANET Antennas by Southwest Antennas

Spatial multiplexing is the principal mechanism by which MIMO achieves its breakthrough in data throughput. Independent data streams are intentionally transmitted from different antenna elements. Provided the environment offers rich multipath, each stream arrives at the receiver with a unique, distinguishable spatial signature. The receiver, equipped with accurate Channel-State Information (CSI), can effectively decouple these streams. For unmanned systems needing to transmit high-bandwidth ISR data or complex telemetry, spatial multiplexing is often the most impactful MIMO antenna technology application.

Diversity Gain: Mitigating Fades and Obstructions

Diversity gain significantly improves the probability that at least one of the multiple communication paths remains usable despite deep fades or localized interference. In airborne systems, this gain is vital for counteracting polarization shifts caused by banking maneuvers, rapid changes in orientation, or body-shadowing. For ground vehicles (UGVs), diversity ensures the link remains available when driving through RF-challenging terrain or urban canyons. Diversity techniques are the primary safeguard that keeps the C2 link available even as individual signal paths degrade.

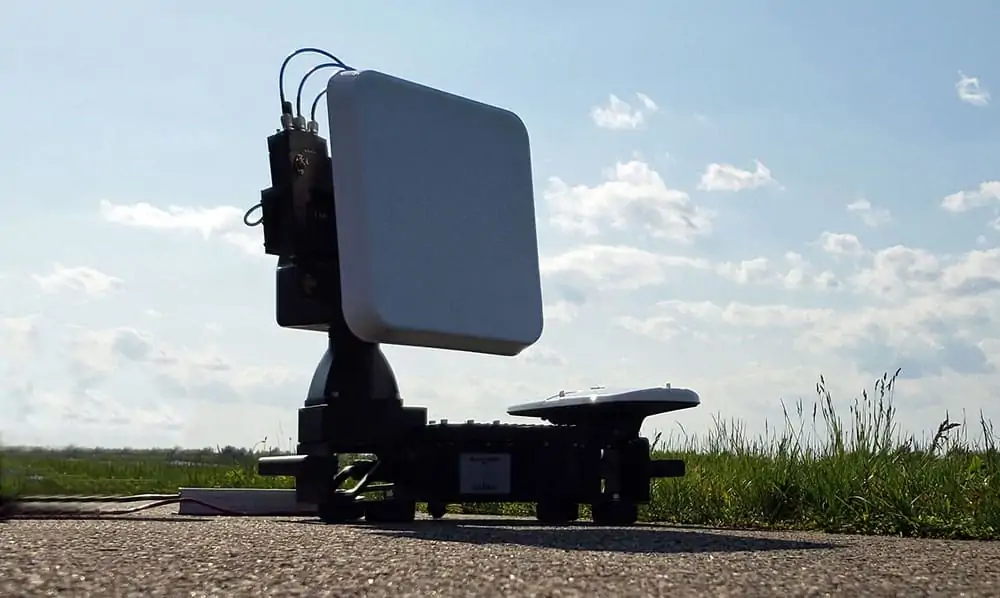

Beamforming and Adaptive Arrays

Beamforming techniques electronically shape and steer the RF radiation pattern, focusing gain precisely toward the intended link partner. MIMO radios equipped with adaptive arrays can continuously track a ground control station or another vehicle, dynamically compensating for platform motion. Critically, these arrays can also suppress or “null out” unwanted interfering sources. Architectures utilizing phased or digital beamforming further solidify link stability during high-dynamics maneuvers – an essential capability for high-speed UAVs or rotorcraft during ascent and rotation.

Channel Correlation and Real-World Constraints

For the MIMO antenna system to achieve maximum performance, the multiple channel paths must be sufficiently uncorrelated. This presents a critical challenge for small, SWaP-constrained unmanned platforms, where antenna spacing may be limited. Engineers must meticulously manage structural placement, considering the detrimental impact of nearby metallic airframe structures, conductive carbon fiber components, and large battery packs on the antenna isolation and pattern. The surrounding environmental conditions, such as specular reflections over water, RF-absorbing vegetation, or industrial metallic clutter, also profoundly affect correlation, demanding that the system be tuned to its expected operational domain.

MIMO Antenna Architectures for Unmanned Platforms

Compact Multi-Element Arrays

The tight Size, Weight, and Power (SWaP) constraints on small unmanned systems necessitate sophisticated design for multi-element arrays. These are often implemented as compact patch antennas, low-profile chip arrays, or custom-integrated modules. Designers focus rigorously on maximizing inter-element isolation, often through custom ground plane integration, complex filtering, or advanced decoupling techniques, and optimizing placement to minimize deleterious cross-coupling caused by the platform itself. The design complexity of an effective UGV antenna or small UAS antenna is frequently underestimated due to these tight integration constraints.

Array Geometries: Linear, Planar, and Circular

The choice of array geometry is highly dependent on the vehicle type and mission profile:

• Linear Arrays: Simple and effective, typically used for directional links or as components within a larger architecture.
• Planar Arrays: Widely used in high-capacity data links for fixed-wing UAVs, offering two-dimensional electronic beam steering.
• Circular Arrays: Particularly well-suited for rotary-wing and VTOL platforms, supporting omnidirectional diversity and providing stable links regardless of platform rotation or hover orientation.

Conformal and Embedded Antenna Designs

Conformal MIMO antennas are engineered to follow the curvature of an aircraft skin, UGV hull, or payload housing. This essential design approach reduces aerodynamic drag, minimizes radar cross-section, and frees up valuable internal volume. Embedded arrays often incorporate advanced composite-material integration, utilizing skin-depth-tuned substrates and specialized radome materials engineered to maintain optimal RF transparency while offering physical protection – a key consideration for rugged UGVs.

Supported Communication Standards and Resilience

LTE/5G for BVLOS Operations

Beyond Visual Line of Sight (BVLOS) operations heavily rely on commercial cellular infrastructure, where MIMO is fundamental. Common 4×4 and 8×8 MIMO configurations in 5G enable unmanned platforms to leverage massive throughput, stream high-resolution sensor data, and maintain redundant C2 channels. Crucially, 5G supports network slicing, which can be utilized to prioritize mission-critical C2 traffic, ensuring the highest level of reliability for the platform.

Tactical Data Links and Resilient Waveforms

Defense-grade waveforms, whether proprietary or standard, increasingly integrate MIMO processing to enhance resilience against deliberate jamming and to support rapid, high-volume Intelligence, Surveillance, and Reconnaissance (ISR) dissemination. These waveforms combine spatial processing with techniques such as frequency hopping, adaptive modulation, and robust coding to maintain secure, interference-resistant communication links in the most contested electromagnetic environments.

SATCOM and Multi-Beam Diversity

Achieving high-throughput diversity over satellite links, particularly Geostationary (GEO) SATCOM, is difficult due to high channel coherence. However, emerging SATCOM-on-the-move systems for UAVs and UGVs leverage advanced techniques to enhance performance. These systems focus on multi-polarization diversity or multi-orbit diversity (blending LEO, MEO, and GEO links) rather than relying on traditional spatial multiplexing. Electronically Steered Antennas (ESAs) are driving significant advancements in this sector, enabling instantaneous switching between satellites and beams to maintain fade resistance and maximize throughput.

Applications and Strategic Use Cases

Robust Command-and-Control Links

For the critical primary and fallback C2 channels, MIMO enhances link robustness through increased sensitivity and spatial filtering. This improves link reliability during complex, dynamic maneuvers or low-altitude flight near obstructions, drastically reducing the probability of a critical lost-link event.

High-Capacity ISR Downlink

ISR missions are inherently bandwidth-intensive, generating high-definition EO/IR video, Synthetic Aperture Radar (SAR) imagery, and multi-sensor fusion data. MIMO’s spatial multiplexing capability provides a direct path to a more efficient and higher-rate downlink, enabling genuine real-time transmission of uncompressed or minimally compressed data. The ability of a MIMO antenna system to handle this data density is paramount for mission success.

Anti-Jam and Electronic Protection

The ability of adaptive MIMO beamforming to dynamically null out intentional interfering sources is a key component of electronic protection strategies. It allows the system to maintain link integrity during deliberate, focused jamming attempts. The inclusion of MIMO is therefore an important layer within a broader suite of defenses designed to maintain communication in a heavily contested spectrum.

Swarm Coordination and Collaborative Autonomy

The low-latency, high-capacity inter-vehicle networks essential for multi-UAV swarm coordination are significantly enabled by MIMO. By allowing more simultaneous links within a shared spectrum, MIMO facilitates complex, cooperative behaviors such as distributed sensing, dynamic mesh networking, and multi-agent navigation and targeting.
