Optical Windows, Lenses, and Domes for Unmanned Systems
Unmanned systems such as UAVs, UGVs, USVs, and ROVs rely on precise imaging technologies to carry out a wide range of tasks, from surveying and surveillance to inspection and mapping. Central to these capabilities are optical windows, lenses, and domes—components that protect delicate sensors and optics while enabling optimal image transmission across various spectral bands.
Material Choices for Unmanned Optics
Material properties directly affect the performance and suitability of optical components in unmanned environments. Below is an overview of commonly used materials and how they contribute to imaging effectiveness:
Sapphire
Sapphire is widely recognized for its strength, scratch resistance, and ability to transmit light across a broad spectrum. These properties make sapphire an excellent choice for UAVs and ROVs operating in abrasive or high-pressure environments. Sapphire optics can withstand impacts, high-speed airflow, and temperature variations, but they are typically more costly than other materials.
Germanium

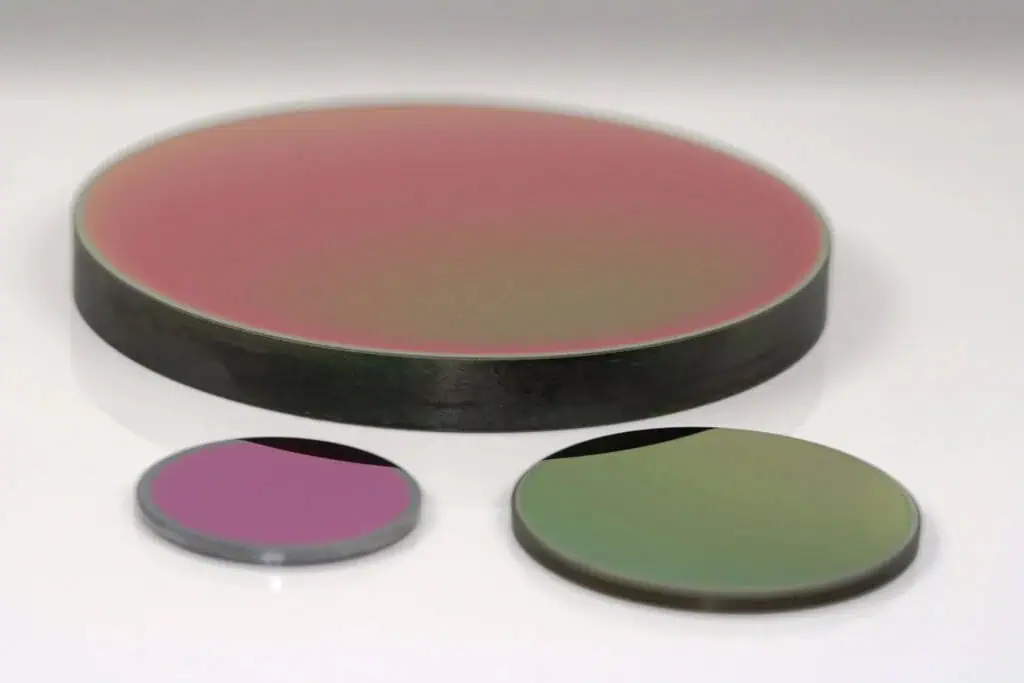

Germanium Windows by Knight Optical
Used primarily for infrared imaging, germanium is ideal for thermal cameras on drones and robotic platforms. It provides excellent transmission in the mid-wave infrared (MWIR) and long-wave infrared (LWIR) bands, making it suitable for night-time operations or heat-based inspections. While germanium optics offer superb IR performance, they are dense and may not be suitable for weight-sensitive platforms.
Quartz (Fused Silica)
Quartz (fused silica) is favored for its thermal stability and wide spectral range, covering ultraviolet, visible, and some infrared wavelengths. These properties are useful for multispectral imaging and precision applications where clarity and consistency are key. Quartz is more prone to scratching compared to sapphire but is more cost-effective.
Optical Glass
Offering a good balance between cost, weight, and optical clarity, glass is a popular choice for drones and ground-based unmanned systems. It supports a wide range of imaging tasks where extreme environmental resistance isn’t critical. Various formulations are available, each optimized for specific wavelengths and performance characteristics.
Understanding Optical Component Types
Unmanned imaging systems incorporate multiple optical components, each performing a defined role within the imaging payload to protect sensors, control light transmission, and maintain image quality across operating environments.
Optical Windows
Optical windows are flat protective elements positioned in front of lenses or sensors to shield internal components from dust, moisture, pressure, and debris while preserving optical clarity. Their design prioritizes transmission efficiency and environmental durability.
Common types include:
- Flat glass windows for visible-spectrum cameras
- Sapphire windows for high-abrasion or high-pressure environments
- Fused quartz windows for ultraviolet or infrared transmission
- Pressure-rated windows for subsea and deep-water applications
- Germanium windows for thermal infrared imaging applications
Optical Lenses
Optical lenses collect, shape, and focus incoming light onto the image sensor, directly influencing resolution, field of view, and spectral performance. Imaging lenses are engineered to match specific wavelength bands and operational requirements.
Common types include:
- Visible-spectrum lenses for daylight imaging
- MWIR lenses optimized for mid-wave infrared sensors
- SWIR lenses for low-light and atmospheric-penetration imaging
- Fixed-focus and zoom lenses for static or variable field-of-view systems
Optical Domes
Optical domes are spherical or hemispherical enclosures that protect gimballed, pan-tilt, or omnidirectional camera systems while allowing unrestricted viewing angles. They are widely used on drones and ROVs where full field-of-view coverage and smooth aerodynamic or hydrodynamic flow are required.
Common types include:
- Hemispherical domes for forward-looking sensors
- Full spherical domes for 360-degree imaging systems
- Sapphire domes for high-speed or abrasive environments
- Polymer domes for lightweight airborne platforms
Optical Filters
Optical filters selectively transmit specific wavelength ranges to improve image contrast, suppress unwanted light, or isolate spectral bands for advanced sensing applications. They are positioned either in front of the lens or within the optical path.
Common types include:
- Neutral Density (ND) filters for reducing overall light intensity without altering color balance
- Polarizing / Polarizers (CPL) for suppressing reflections and improving contrast
- UV (MCUV) filters for blocking ultraviolet radiation and protecting optical elements
- IR cut filters for preventing infrared contamination in visible-spectrum sensors
- IR pass / NIR filters for transmitting infrared and near-infrared wavelengths
This structured approach allows optical systems in unmanned platforms to be tailored precisely to mission requirements, environmental conditions, and sensor technologies.

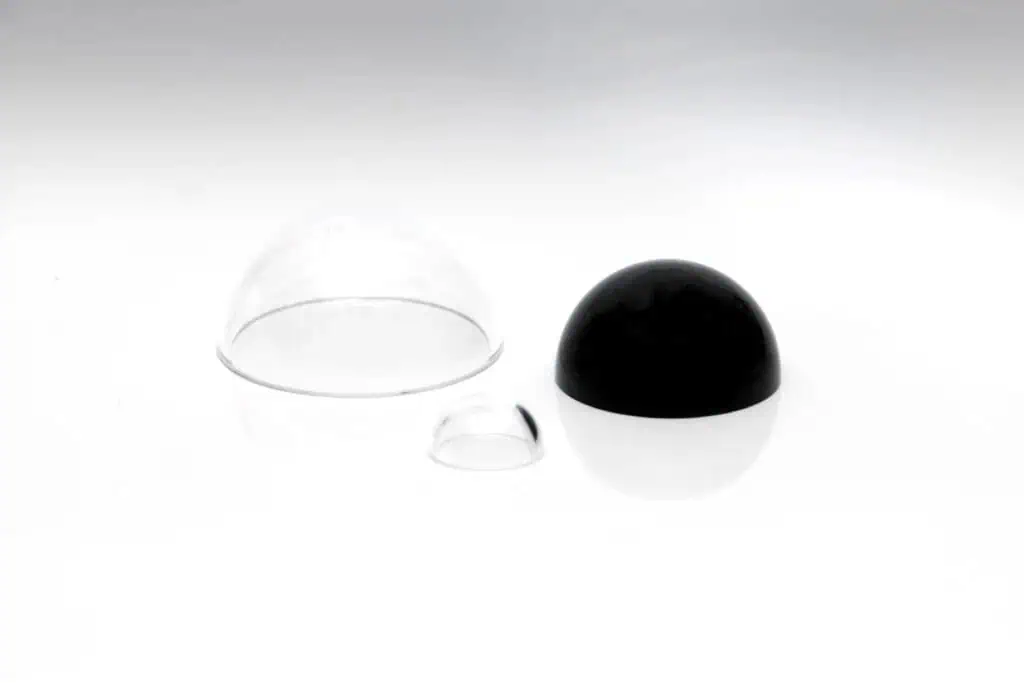

Optical Domes by Knight Optical
Application Examples in Unmanned Systems
The need for reliable, high-clarity optical components extends across multiple unmanned platforms and environments:
Aerial surveillance and mapping (UAVs)
Drones equipped with cameras for geospatial mapping or infrastructure inspection benefit from fused silica or sapphire windows that ensure high optical transmission and environmental resistance. These materials support multispectral and hyperspectral imaging systems used for agriculture, construction, and environmental monitoring.
Thermal imaging (UAVs, UGVs, ROVs)
Infrared-capable drones and robotic platforms often use germanium or silicon optics. Germanium windows and lenses provide superior IR transmission for MWIR and LWIR bands, while silicon is used for lightweight LWIR applications. Germanium optics are widely used in fault detection, search and rescue, and pipeline inspection.
Subsea exploration and inspection (ROVs and AUVs)
ROVs and autonomous underwater vehicles require robust dome windows that can withstand high pressure and saltwater corrosion. Sapphire domes and fused quartz domes offer excellent resistance to harsh underwater conditions while maintaining optical clarity for sonar, camera, and laser systems.
Land-based autonomous systems (UGVs)
Unmanned ground vehicles benefit from optical glass or sapphire windows depending on terrain and environmental exposure. These systems often integrate imaging lenses and filters tailored for low-light or IR-enhanced navigation.
Considerations for Material Selection
Choosing the right optical component for your unmanned system depends on various factors:

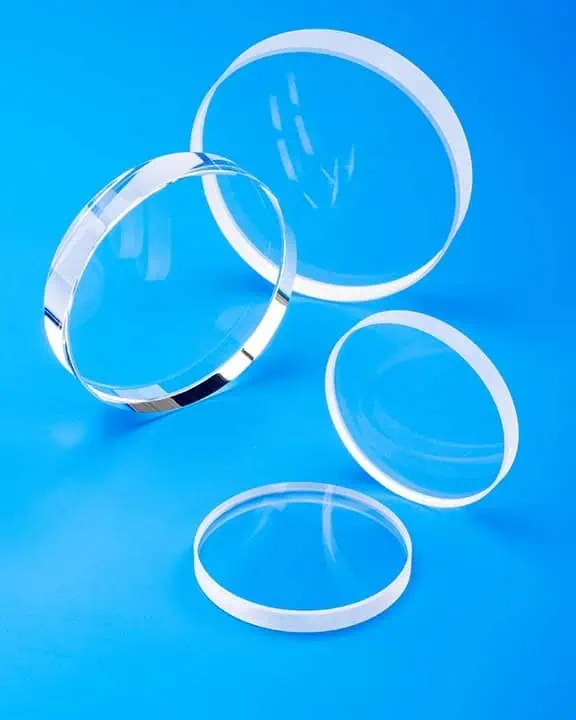

Sapphire Windows by Meller Optics
- Spectral requirements – what wavelengths does the sensor operate in (UV, visible, IR)?
- Environmental exposure – will the system face impact, vibration, chemicals, or high pressure?
- Weight and size constraints – particularly important for aerial and mobile systems
- Budget and lifecycle – cost vs. durability trade-offs, especially in high-risk or disposable systems
Working with manufacturers that offer custom optical windows and domes ensures that your imaging payload is optimized for its specific application. Whether you need a high-durability sapphire lens or a lightweight polymer window, custom engineering can improve optical performance and extend system longevity.
High Quality Optics Means High Performance
As imaging technology becomes more integrated into unmanned platforms, the importance of high-quality optical windows, lenses, and domes continues to grow. From sapphire optics for rugged drones to germanium domes for thermal marine systems, these components provide critical protection and clarity. Selecting the right material and optical design ensures maximum performance from your imaging system—whether it’s navigating a dense forest canopy or exploring the ocean floor.
