Quartz Optical Windows

Introduction to Quartz Optical Windows

Quartz optical windows, typically made from fused silica or fused quartz glass, are known for their ability to transmit light across a broad spectral range, from deep ultraviolet through visible light and into the infrared. This makes them highly valuable in environments where diverse wavelengths are required for data collection, imaging, or communication.

One of the most notable characteristics of quartz glass for optics is its thermal stability. With a low coefficient of thermal expansion, quartz maintains its structural and optical integrity across a wide range of temperature variations. It is also inert to most chemicals, making it resistant to corrosion from saltwater, industrial environments, and reactive gases. This durability, coupled with high laser damage thresholds, positions quartz windows as a key component of optical systems in unmanned applications.

Applications of Optical Quartz Windows in Unmanned Systems

Aerial Imaging and Remote Sensing

In unmanned aerial vehicles (UAVs), quartz optics are widely used in hyperspectral and multispectral imaging systems. These systems analyze reflected light across dozens to hundreds of bands, enabling precise detection of crop health, mineral composition, or environmental changes. Quartz windows ensure high transmission efficiency across UV to IR bands, which is critical for accurate remote sensing. They are also used in aerial mapping platforms and photogrammetry drones for capturing precise geographic data.

Thermal and Infrared Vision

While germanium dominates long-wave infrared imaging, optical quartz glass offer a durable and cost-effective solution for near-infrared applications. Surveillance drones, autonomous ground vehicles, and robotic vision systems often operate with sensors that rely on near-IR transparency. Quartz windows provide reliable performance in thermal imaging systems that operate just outside the visible spectrum, particularly when thermal resistance and mechanical durability are top priorities.

Laser-Based Systems and LIDAR

LIDAR systems depend on precise optics that can withstand repeated laser pulses without distortion. Quartz glass is highly suitable for laser altimetry, bathymetric LIDAR, and wind LIDAR technologies used in autonomous vehicles and aerial mapping. Its resistance to laser damage and consistent optical path make quartz ideal for maintaining the accuracy of ranging and detection systems. Additionally, quartz lenses and domes support laser communication systems by providing clear optical paths for high-speed data transmission.

Marine and Underwater Platforms

Remotely operated vehicles (ROVs) and autonomous underwater vehicles (AUVs) use quartz domes to house wide-angle imaging systems. The material’s high-pressure resistance, anti-corrosive properties, and optical clarity make it ideal for subsea exploration, pipeline inspections, and environmental monitoring. Hemispherical domes offer uniform imaging across all angles, supporting photogrammetry and real-time video feeds. Quartz also plays a role in underwater lidar and UV imaging, where clarity and durability are essential.

Sensor Protection and Environmental Detection

Unmanned platforms often carry sensitive equipment for radiation detection, gas analysis, or environmental monitoring. Quartz windows serve as protective interfaces for instruments measuring ultraviolet radiation, atmospheric gases, or particulate matter. Their chemical resistance ensures long-term stability in harsh environments, from industrial facilities to volcanic regions. Applications include gas detection systems, radiation monitors, weather sensors, and airborne environmental sampling platforms.

Scientific, Defense, and Surveillance Systems

Quartz glass is also extensively used in unmanned platforms supporting scientific and defense missions. Spectrometers and fluorescence detection systems often require UV-transparent optics to function effectively. Surveillance systems benefit from quartz’s abrasion resistance and stability, particularly in drones used for border security, crowd monitoring, and tactical reconnaissance. In these contexts, quartz windows help maintain camera clarity and sensor reliability, even under mechanical stress or rapid thermal cycling.

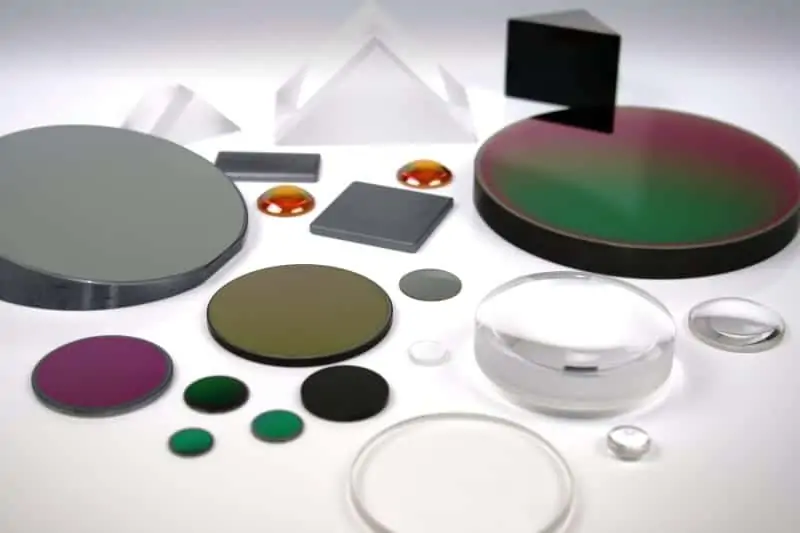

Forms of Quartz Optics Used in Unmanned Systems

Quartz optics are typically manufactured in three forms to accommodate different system requirements:

• Quartz windows are flat optical components used to shield cameras, sensors, and emitters from harsh environments. They are optimized for transmission while providing structural protection.
• Quartz lenses are precision-formed elements that focus or collimate light. These are used in systems requiring broadband imaging, laser transmission, or spectral analysis.
• Quartz domes are hemispherical or near-hemispherical enclosures that protect optical sensors while maintaining a wide-angle, distortion-free field of view. Domes are particularly useful for high-mobility and underwater systems where image clarity across all angles is critical.

Each form serves a specific role depending on the platform, sensor payload, and operational environment.

How Quartz Windows Compare to Sapphire & Germanium

The selection of optical materials for unmanned systems depends on environmental and operational requirements. Optical quartz, germanium, and sapphire are commonly used, each offering distinct advantages.

Germanium is preferred in long-wave infrared applications, particularly in thermal imaging. It has a high refractive index and strong IR transparency, but is heavier, more brittle, and opaque to visible and UV light. Its performance also degrades at high temperatures.

Sapphire excels in hardness and scratch resistance. It transmits light from UV through mid-IR and withstands extreme temperatures and pressures. However, it is costly, difficult to machine, and limited in the shapes it can take, especially when compared to quartz.

Quartz glass strikes a balance between spectral performance, manufacturability, and cost. While softer than sapphire and less IR-transparent than germanium, it is far more versatile, offering excellent UV to IR transmission, resistance to thermal and chemical stress, and the ability to be shaped into complex optics, including domes and lenses.

Design Considerations in Integrating Quartz Windows

When specifying quartz components, engineers must account for shape, coating, and application environment. Windows and domes must strike a balance between thickness and optical clarity, particularly when subjected to pressure or mechanical impact. Lenses must be ground and polished with precision to prevent distortion in imaging or laser applications.

Specialty coatings enhance quartz performance. Anti-reflective coatings improve transmission efficiency, while hydrophobic layers help maintain visibility in wet or contaminated settings. In high-energy laser systems, coatings can also be tailored to reduce thermal lensing and prevent damage.

Because quartz is more readily machined than sapphire and more durable than germanium, it allows for greater flexibility in designing custom optics for emerging unmanned technologies.

Strategic Value of Quartz Optics in Unmanned Technology

Quartz optics offer a compelling blend of strength, stability, and spectral versatility. Their ability to perform reliably in extreme temperatures, corrosive environments, and high-vibration conditions makes them essential in unmanned systems ranging from reconnaissance UAVs to deep-sea ROVs. By choosing quartz for key optical components, system designers can extend operational lifespans, improve imaging and sensing fidelity, and reduce maintenance overhead in critical applications.

As unmanned technologies continue to evolve and expand into new environments and capabilities, quartz remains one of the few materials capable of meeting the increasing demands for clarity, durability, and performance.
